Servo drive working principle

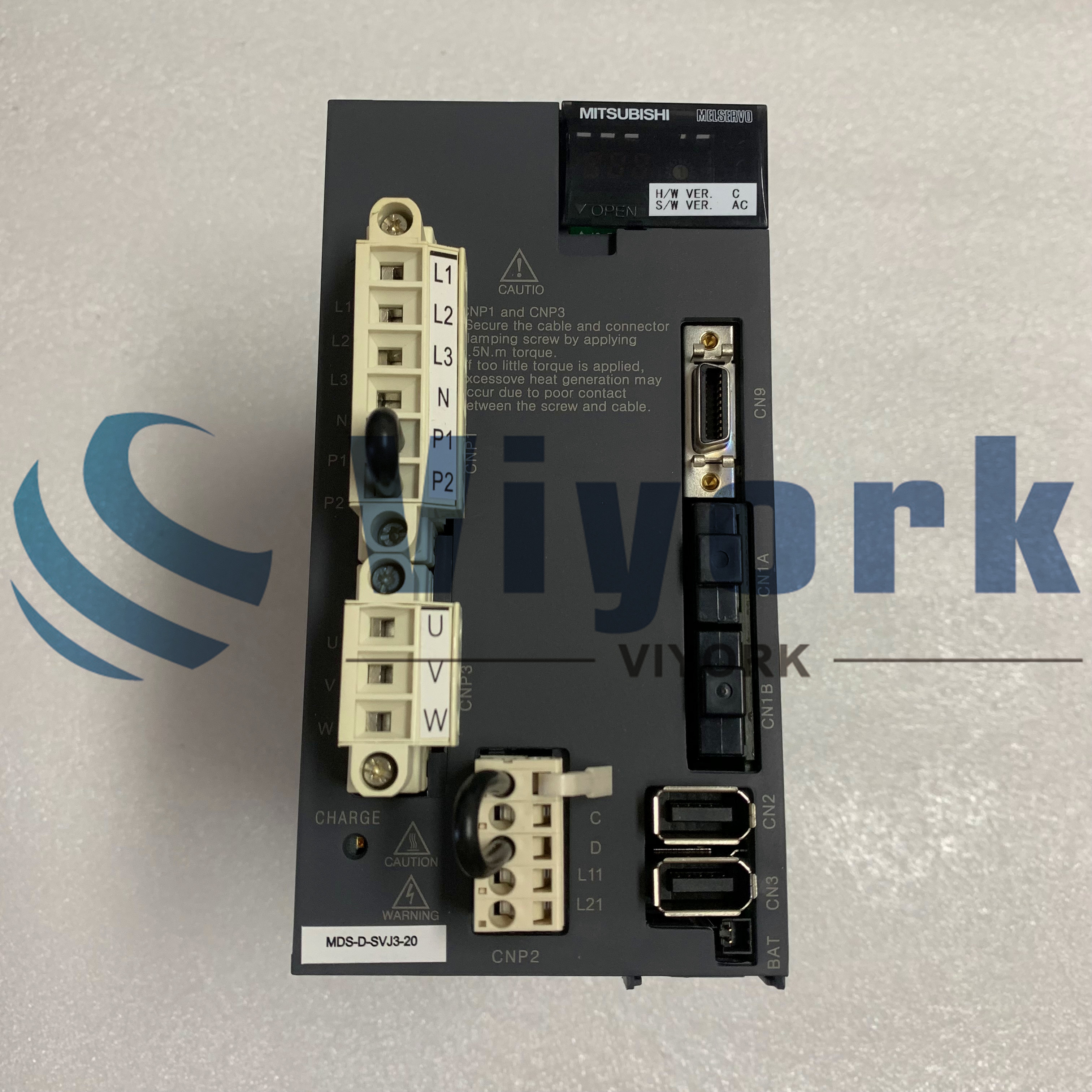

MDS-D-SVJ3-20 (4)A servo drive is an essential component in many industrial and automation systems, providing precise control over the movement of machinery and equipment. Understanding the working principle of a servo drive is crucial for engineers and technicians working in these fields.

The working principle of a servo drive involves the use of a closed-loop control system to accurately regulate the speed, position, and torque of a motor. This is achieved through the integration of several key components, including a motor, encoder, controller, and power amplifier.

At the core of the servo drive is the motor, which can be a DC motor, AC motor, or brushless motor, depending on the application requirements. The motor is responsible for converting electrical energy into mechanical motion. The encoder, a feedback device, continuously monitors the actual position and speed of the motor and provides this information to the controller.

The controller, often a microprocessor-based unit, compares the desired setpoint with the feedback from the encoder and generates the necessary control signals to adjust the motor’s operation. This closed-loop control system ensures that the motor maintains the desired speed and position, making the servo drive highly accurate and responsive.

The power amplifier is another critical component of the servo drive, as it amplifies the control signals from the controller to provide the necessary power to drive the motor. This allows the servo drive to deliver precise and dynamic control over the motor’s performance, enabling it to handle rapid acceleration, deceleration, and changes in direction.

Overall, the working principle of a servo drive revolves around the seamless coordination of the motor, encoder, controller, and power amplifier within a closed-loop control system. This integration allows the servo drive to deliver exceptional precision, speed, and torque control, making it an indispensable technology in a wide range of industrial and automation applications.

In conclusion, understanding the working principle of a servo drive is essential for anyone involved in the design, implementation, or maintenance of motion control systems. By grasping the fundamental concepts behind servo drive operation, engineers and technicians can harness the full potential of this technology to achieve optimal performance and efficiency in their applications.
